Class-leading performance and reliability.


Whether you're looking for proven performance in a package that offers exceptional value or a tractor that gives you the latest electronic conveniences and push button simplicity, T6000 Series tractors are built for you. You choose the model that's configured perfectly for your application. T6000 tractors are a natural choice for haying operations, heavy loader work, roadside mowing or row crop applications.


Choose the level of specification that matches your needs-Delta, Plus or Elite.


The Delta configuration models (T6020, T6030, T6050):
Class-leading performance and reliability in a base level configuration. Features an open-center hydraulic system.


The Plus configuration models (T6020, T6030, T6050, T6070):
Superior on-the-job performance and an impressive list of standard features including a semi-powershift transmission, higher-capacity closed-center hydraulic system, and deluxe Horizon™ cab.


The Elite AutoShift™ and Power Command™ models (T6020, T6030, T6040, T6050, T6060, T6070 and T6080):
Top-of-the-line comfort and performance features including engines with Electronic Power Management, Custom Headland Management, and Electronic Draft Control. You can enhance your productivity and comfort on Plus and Elite models with optional features like electro-hydraulic remotes, the Comfort Ride™ suspended cab, a SuperSteer™ axle or a Terraglide™ axle.


Dependable turbocharged engines provide outstanding power and fuel economy.



Choose the T6000 transmission that best suits the work you do:
24 x 24 Dual Command™
16 x 16 Electroshift™
16 x 16 Autoshift™
18 x 6 Power Command™


Responsive hydraulic power results from a high-capacity, two-pump hydraulic system.



Four axle choices allow you to build the T6000 tractor that works best for your conditions. Choose 2WD, FWD, SuperSteer FWD or Terraglide FWD.


The FastSteer™ steering system option allows you to turn faster with fewer turns of the steering wheel. Simply press the inner ring of the steering wheel and FastSteer lets you make a full right or left turn with only a 10-degree turn of the steering wheel. It makes your loader work easier, and you expend less effort at the headland at speeds less than 6.2 mph.


The Horizon™ cab features an unmatched view with a unique high-visibility roof panel. And, this cab is also more spacious, comfortable and quiet than the cabs found on other tractors.


Or choose the spacious flat deck ROPS available on Delta models. It offers outstanding visibility, convenient controls and an uncluttered work space.


Easy servicing is part of the T6000 tractor design.


A rear 540/1000 rpm PTO is standard equipment. It has a single reversible shaft and includes soft start and coast down features. An exterior PTO switch (standard on models with cabs) is provided on the rear fender for easy control from the ground. If you press the button for less than five seconds, you get a pulsing action that makes it easier to hook up the PTO shaft. Hold the button for longer than five seconds to fully engage the PTO.

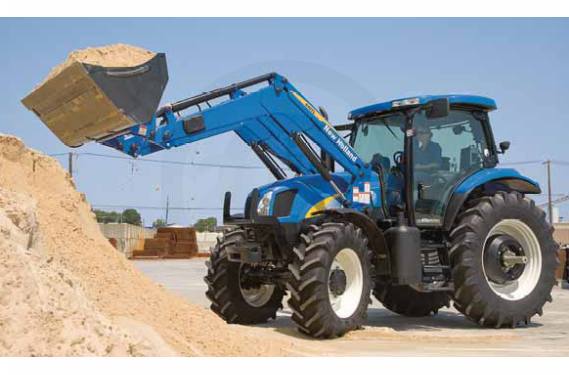

Add an 830TL or 840TL front-end loader to your T6000 and make your chores go faster.


Engine


You encounter tough conditions every day, and T6000 tractor engines are up to the task. Turbocharged four-cylinder, engines on the T6020, T6040 and T6060 and six-cylinder engines on the T6030, T6050, T6070 and T6080 provide dependable, quiet power day in and day out. T6000 engines are turbocharged and air-to-air intercooled for improved performance.


Up to 47% torque reserve on tap (depending on model) means these engines will respond when your work gets really tough.


Computer-designed, parent bore cylinder block has a contoured outer surface for increased strength.


Air-to-air intercooling improves performance, while a five-blade viscous fan maintains temperature, reduces noise, lowers horsepower consumption, and saves fuel.


A mechanically governed rotary fuel injection pump (Delta and Plus models) with two valves per cylinder provides simple yet responsive control.


A High-Pressure Common-Rail (HPCR) electronic power management system on Elite AutoShift™ and Power Command™ models delivers superb fuel efficiency, fast response, low noise and low emissions.


A power boost feature on Elite models delivers up to an additional 25 horsepower during PTO operations and road transport. When the torque applied through the PTO exceeds a certain level, the power management system automatically increases the available engine horsepower to help maintain rated PTO horsepower in challenging crop conditions or terrain.


A constant RPM feature is another advantage of electronic power management on Elite models. You can pre-set up to two fixed engine speeds that match your needs. You change from one speed to the other using a single button. This allows you to keep your eyes on the job, not on the throttle lever or engine speed display.


Transmission


A selection of transmissions allows you to equip T6000 Series tractors to match your field and job applications. All five transmissions offer the convenience of a dedicated, column-mounted, left-hand shuttle lever, making T6000 Series tractors highly efficient at loader work. All models are available with creeper speeds for low-speed applications.


NEW transmissions now available on the T6000 Elite models.


17 x 16 AutoShift™ or 19 x 6 Power Command™ 25-mph (40-kpm) Economy transmission. Like the 16 x 16 AutoShift or 18 x 6 Power Command, this transmission features a maximum ground speed of 25 mph (40 kph), but with the Economy drive, you can achieve that maximum speed at a lower engine speed for improved fuel efficiency.


17 x 16 AutoShift or 19 x 6 Power Command 31-mph (50-kph) transmission.
This transmission provides an additional forward speed, allowing the T6000 Elite to achieve a higher maximum ground speed. Includes TerraGlide™ front suspended axle with brakes, radar, hydraulic trailer brakes and front fenders. (Tire size restrictions apply.)


24 x 24 Dual Command™ Hi-Lo transmission with power shuttle (Available on T6020 and T6030 Delta models)


A clutchless power shuttle allows you to shift between forward and reverse without clutching.


The Dual Command feature gives you double the speed choices by allowing you to select an underdrive for each of the twelve forward and reverse gears while on the move. This effectively changes torque by 22% and tractor speed by approximately 18%.


Convenient Dual Command buttons are located right on the gearshift lever to allow you to powershift on-the-go without clutching. Use the lower button (tortoise) to engage the underdrive. Push the upper button (hare) to disengage Dual Command and return to direct drive.


Transport speed is 19 mph for 2WD models and 25 mph for FWD models.


16 x 16 ElectroShift™ transmission with power shuttle (Available on all Delta and Plus models)


Powershift through the four gears of each range with the touch of a button. You can also change between the first and second range, and between the third and fourth range without clutching.


Two buttons on the side of the transmission lever and a duplicate set under the gear display allow you to powershift through the gears within each range. Tap the button to move one gear at a time, or hold the button in to shift sequentially. The single button immediately below the display allows you to make easy range changes. You need the clutch only once in 16 gears.


No-clutch, electro-hydraulic shuttle is ideal for loader work and other jobs that require frequent forward/reverse shifts. You engage it by simply moving the shuttle lever located on the left-hand side of the steering column.


The programmable shuttle allows you to program the reverse speed to three gears lower or higher than your forward speed, providing they are in the same range. This is a feature you won't find on most other tractors.


16 x 16 AutoShift transmission with power shuttle and automatic and programmable up/down shifting (Available on all Plus models and standard on Elite AutoShift models)


Offering the same operational convenience as the 16 x 16 ElectroShift transmission, the 16 x 16 AutoShift transmission has even more time-saving features.


Push the AutoShift button, and the 16 x 16 AutoShift transmission does the shifting for you-both in the field and the road.


In the field, the AutoShift transmission shifts as needed within the four gears of Ranges A (Gears 1 to 4), B (gears 5 to 8) or C (Gears 9 to 12). When the load on the engine increases, or tractor speed slows, the transmission will automatically shift to a lower gear then shift back up when conditions permit.


When roading, press the AutoShift button and the transmission will shift as needed within Ranges C and D, allowing the tractor to automatically move from gear 9 through gear 16 and back down as needed. Press the AutoShift button twice, and you can program the transmission to shift as needed between ranges three and four-another unique feature.


You can program the shift point to suit different applications and to tailor shifting to your driving style-another feature you won't find on most other tractors. You can set the shift point to occur every time the engine speed increases or decreases by a specific percent.


The electro-hydraulic power shuttle allows you to shift from forward to reverse with the touch of your left hand. There's no need to let go of the steering wheel, and no need to clutch. Like the 16 x 16 ElecroShift transmission, the shuttle is programmable.


An illuminated LED gear display, located to the right of the main shift lever, displays the gear you've selected. If AutoShift is activated, the road range and field range are also displayed.


18 x 6 Power Command full powershift transmission (Standard equipment on Elite Power Command models)


The convenient seat-mounted multi function controller gives you complete transmission control.


Clutchless power shuttle is electro hydraulically engaged and located to the left of the steering column for easy fingertip control.


The shuttle is programmable, allowing you to customize the shuttling action by programming the best forward and reverse speed for each job.


Push the AutoShift button and the 18 x 6 Power Command transmission does the shifting for you, both in the field and on the road. Gears 1 through 11 are available for automatic field shifting, while gears 7 through 18 are available for automatic transport shifting.


You select the automatic shift point to suit different applications. Just program the transmission to shift after a speed increase or decrease of 5, 10, 15, 20, 25, or 30%.


Nine of the 18 forward speeds are in the 2 to 8 mph working range, allowing you to easily find the speed that best matches your implement's capabilities.


Hydraulics


Responsive T6000 Series hydraulic power is the result of a high-capacity, two-pump system. A 10.5-gpm steering pump (12.4 gpm on Delta models with the 16 x 16 transmission) provides flow for steering and power-shifting hydraulic needs, while a second dedicated pump delivers rear remote flow to drive implements.


An open center system with a 16.6-gpm fixed displacement gear pump is provided on all Delta models.


A closed-center load-sensing (CCLS) system delivers 26.5 gpm to the remotes on demand for all Plus and Elite models.


Two remote valves with quick couplers are standard from the factory. Up to three valves are available on Delta models, while Plus and Elite models are available with up to four valves. Plus and Elite model remote valves are equipped with flow control. Elite models have configurable detents as standard equipment.


Electro-hydraulic remote control valves are available on Plus and Elite models. You can control the flow rate and timing of these valves from the cab and keep informed of their status using the visual display and enhanced monitor.


Impressive three-point lift capacities allow you to use larger implements to get more work done with each pass. Lift capacities range from 7,509 pounds on Delta models up to 12,185 pounds of lift capacity on selected Plus models and all Elite models.


Lift-O-Matic™ fast raise/lower system is standard on T6000 tractors with mechanical draft control. You can raise or lower the three-point hitch at the headland with the simple press of a button.


A Category II, three-point hitch with mechanical draft control and lower link sensing is standard equipment for Delta and optional on Plus model tractors (except for the T6070).


A Category II/IIN three-point hitch with electronic draft control is standard equipment on all T6000 Elite models as well as the T6070 Plus, and optional on all other Plus models. Once set, the hydraulic system automatically adjusts implement depth to maintain an even pull on the tractor and keep wheel slip to a minimum. Using position control, you get accurate control of implements, such as sprayers, rakes and mowers that operate above the ground. When implement height has been set, the system maintains the selected position.


Electronic draft controls are located conveniently on the right-hand armrest console, with additional hydraulic controls located under the armrest (Plus and Elite models only).


Dynamic Ride Control™ is standard equipment on electronic draft control hitches and takes the bounce out of three point-mounted implements during transport.


Rocker switches on the rear fenders (models equipped with electronic draft control) allow you to raise and lower the three-point hitch for easy implement attachment.


Axle


New Holland offers a range of T6000 front axles so that you can choose the axle that most effectively handles your terrain, conditions and implements.


Axle options include:
Heavy-duty 2WD axle
Conventional FWD axle with limited slip
TerraLock™ automatic FWD axle
SuperSteer™ FWD axle with TerraLock
TerraGlide™ suspended axle with TerraLock
FastSteer™ steering system


Heavy-duty wet plate rear differentials are standard on all Plus and Elite models while dog clutch rear differential and limited slip front-wheel assist differential are standard on all Delta models.


The TerraLock electronic traction system gives you the convenience of fully automatic FWD and differential lock engagement. You get full drive capability through all four wheels for optimum traction. The TerraLock system is optional on all T6000 Plus and Elite FWD tractors, and is standard on tractors equipped with the SuperSteer or Terraglide FWD axles.


Optional SuperSteer FWD Axle (Available on Plus and Elite models, not available on tractors equipped with the Terraglide axle)


An unmatched 65° turn angle makes maneuvering in tight quarters easy, and saves you time and travel distance when making headland turns.


A heavy-duty ball joint attaches the SuperSteer axle to the tractor. When the tractor turns, the whole axle pivots, allowing the outside wheel to move in front of the nose of the tractor to provide more tire clearance and sharper turning angle.


TerraLock is standard equipment with the SuperSteer tractors.


Optional TerraGlide Suspended FWD Axle (Available on Plus and Elite models, not available on tractors equipped with the SuperSteer axle)


The TerraGlide axle travels up to four inches to keep the front tires on the ground even at high speeds, providing not only an ultra-smooth ride, but also delivering maximum traction, stability and control.


TerraGlide is a simple, affordable design-unlike complicated systems found on other tractors.


TerraGlide is automatically activated at speeds over 0.9 mph, but can be locked out if not required. That's a feature you won't find on other systems.


TerraLock is standard equipment with TerraGlide tractors.


The FastSteer steering system option allows you to turn faster with fewer turns of the steering wheel. Simply press the inner ring of the steering wheel, and FastSteer lets you make a full right or left turn with only a 10-degree turn of the steering wheel. It makes loader work easier, and you expend less effort at the headland at speeds less than 6.2 mph. Available on all Plus and Elite models.


Rear axle options include:
Delta, Plus, Elite AutoShift™
Flange
98-in. bar axle
Elite Power Command™
Flange
98-in. bar axle
112-in. bar axle (duals available)


Horizon™ Cab


No other cab comes close to providing the convenience and productivity of the Horizon™ cab. It is more spacious and more comfortable, and the hushed interior, with a sound level as low as 71 dba, provides a "crescendo of quiet." Panoramic views and natural controls give you an entirely new perspective on your work.


The expansive windshield and two wide, full-glass doors add up to 63 square feet of glass to provide outstanding visibility. Front and rear windshield wiper/washers are standard equipment.


A high-visibility roof panel provides an upward view that's handy during loader work. A sunshade blocks glare and, on Plus and Elite models, you can open the roof panel for fresh air.


A plush air-ride seat (standard on Plus models and optional on Delta models) swivels, supports, and adjusts in a multitude of ways for your comfort. A deluxe mechanical-suspension seat is standard equipment on Delta models.


A deluxe air-suspension seat is optional on Plus models and standard on Elite models for the ultimate in traveling comfort. The deluxe air-ride seat features adjustable armrests, a thicker, wider cushion, increased suspension travel, seat pan extension, adjustable lumbar support and more.


A full-size instructor's seat is a factory-installed option on all T6000 cab models. Stowing the seat provides you with handy work area and cup holders.


A cup holder and interior storage are provided to your left. An optional storage box can be added behind the instructor's seat or standard equipment box.


Heat and air conditioning controls are conveniently located on the rear cab pillar to your left.


The halogen light package on all T6000 Series tractors includes eight forward lights and four rear lights for maximum illumination.


Optional Comfort Ride™ cab suspension (available on Plus and Elite cab models) provides a smooth, even ride over rough ground or bumpy access roads. The system uses front-mounted "donuts" that minimize the right-to-left movement of the cab, while two rear-mounted shock absorbers even the up-and-down movement of the cab.


A deluxe cab option available on T6000 Elite models includes added comfort and convenience features like:
Automatic temperature control
Electronically adjusted, telescoping heated mirrors
Electro hydraulic remotes as standard equipment
Deluxe suspension seat with heated cushions.


Enhanced performance monitor (available on all Plus and Elite models) allows you to track and program a variety of functions including linkage height, PTO speed, hours, distance traveled and electronic remote valve status. It also includes a maintenance reminder and an odometer.


Optional radar (available on Plus and Elite tractors equipped with electronic draft control) monitors wheel slip and allows you to receive accurate reports of total area worked and area-covered-per-hour forecasts.


Flat Deck ROPS


You'll work efficiently and comfortably from the spacious T6000 iso-mounted flat deck ROPS. Your view to the work around you is excellent and controls are placed in a natural position for easy reach. The flat-deck platform is available on T6020, T6030 and T6050 Delta models.


Large, wide steps and full-length support handles make it easy to step aboard.


Suspended floor pedals provide an uncluttered path on and off.


Throttle and transmission controls are placed in a natural position on the right-hand console and always come easily to hand. Hitch controls are on the right-hand armrest for fingertip control.


The deluxe seat with mechanical suspension swivels and adjusts to fit you perfectly, and the steering wheel tilts to suit your preferences.


Glass comfort shielding to the front at floor level keeps noise to a minimum and helps protect the operator from the environment.


Analog and digital instrumentation is located directly in front of you, providing information at a glance. Displays include an hour meter, tachometer, and engine temperature and fuel gauges. LCD displays report ground speed, time, PTO speed, three-point position and wheel slip. A series of 21 indicators and warning lights keep you informed.


Service


When it's time for routine maintenance, you can tell that a lot of thought was put into the design of T6000 tractors. The key to fast and easy T6000 serviceability is total access to all maintenance points.


The convenient, one-piece flip-up hood opens effortlessly on gas struts to provide access for routine maintenance.


Engine oil can be checked and filled at the same convenient point, without raising the hood. And it requires changing only every 600 hours.


A sight glass replaces a dipstick for a quick visual check of the transmission oil level.


The oil cooler and A/C condenser slide out to the side for easy cleaning.


A swing-out battery tray allows for fast battery access.


Ground-level fueling saves time and effort.


Fuel tank capacities:
Delta, Plus and Elite four-cylinder models: 46.5 gal. (40.2 gal. with SuperSteer axle)
Delta and Plus six-cylinder models: 67 gal. (60.8 gal. with SuperSteer™ axle)
Elite AutoShift™ six-cylinder models: 66 gal. (60.8 gal. with SuperSteer axle)
Elite Power Command six-cylinder models: 79.3 gal.
