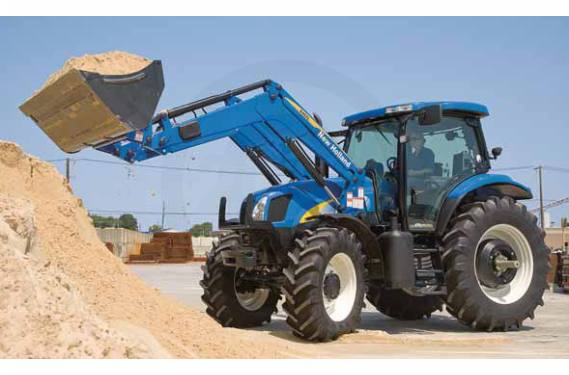

2009 New Holland Agriculture T6070 Elite Power Command™
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Gross: 140 HP (104 kW)
    • Rated PTO: 120 HP (90 kW)
    • Rated speed: 2,200 rpm
    • Power boost: 25 HP (19 kW)
    • Cylinders/displacement: 6 / 411 cu. in. (6.7 l)
    • Number of valves: 24
    • Aspiration: Turbocharged / air to air intercooled
    • Fuel injection: High pressure common rail electronic - direct injection
    Electrical
    • Standard alternator: 120 amps
    • Battery capacity (1 battery): 1300 CCA
    Transmission
    • 18x6 Power Command: Standard
    • 19x6 Power Command, 31 mph (50 kph): Optional
    • 19x6 Power Command Economy: Optional
    • Standard PTO (reversible shaft): 540 / 1,000 rpm, 1- 3/8 in. (34mm / 9mm)
    Axles
    • Conventional FWD axle w/ TerraLock™: Standard
    • SuperSteer™ FWD axle w/ TerraLock™: Optional
    • TerraGlide™ FWD axle w/ TerraLock: Optional
    • FastSteer™: Optional
    • FWD tread adjustability: 62.2 in. - 92 in. (1580 mm - 2337mm)
    • Wheelbase: 107.8 in. (2739mm)
    • SS FWD axle wheelbase: 113.8 in. (2891mm)
    Hydraulics
    • Hydraulic type: Closed center load sensing
    • Remotes options: 2, 3, or 4 (mechanical or electronic)
    • Main/implement pump flow: 26.5 gpm (100.3 l/min.)
    • Steering and services pump flow: 17.1 gpm (65 l/min.)
    • Total tractor hydraulic flow: 43.6 gpm (165.3 l/min.)
    • Draft control: Electronic draft control
    • 3-point hitch category: Category II, flexible link ends
    • 3-point hitch lift capacity: 12,185 lbs. (5,539 kg)
    Capacities
    • Fuel tank: 79.3 gal. (300 l)
    • Fuel tank w/ SuperSteer: 79.3 gal. (300 l)
    • Engine oil: 16 qt. (15 l)
    • Hydraulic fluid: 19.8 gal. (75 l)
    Horizon™ Cab w/Hi-Visibility Panel
    • Glass area including hi-visibility panel: 63 sq. ft. (5.85m2)
    • Sound level: 70 dBA
    Shipping Weight
    • Std. FWD: 11,836 lbs. (5,380 kg)

    Specifications

    Engine
    Engine Manufacturer New Holland
    Horsepower 140 HP (104 kW)
    PTO HP 120 HP (90 kW)
    Rated RPM 2,200 rpm
    Bore and Stroke 4.0 in. x 5.19 in. (104 x 132mm)
    Specifications
    Wheelbase 107.8 in. (2739mm)
    Height 114.9 in. (2918mm)
    Width 85.4 in. (2170mm)
    Weight 11,836 lbs. (5,380 kg)
    Tire Size Front: 14.9R28; Rear: 18.4R38
    General
    Fuel Capacity 79.3 gal. (300 l)
    Transmission 18F / 6R Power Command
    Brakes Wet Disc
    Hydraulics Closed center load sensing
    Drive Type Planetary

    Compare Models

    		 Print








    Year 2009
    Manufacturer New Holland Agriculture
    Model T6070 Elite Power Command™
    Style Utility
    Engine
    Engine Manufacturer New Holland
    Engine Type
    Horsepower 140 HP (104 kW)
    PTO HP 120 HP (90 kW)
    Rated RPM 2,200 rpm
    Bore and Stroke 4.0 in. x 5.19 in. (104 x 132mm)
    General
    Fuel System
    Fuel Capacity 79.3 gal. (300 l)
    Transmission 18F / 6R Power Command
    Brakes Wet Disc
    Hydraulics Closed center load sensing
    Drive Type Planetary
    Specifications
    Wheelbase 107.8 in. (2739mm)
    Height 114.9 in. (2918mm)
    Width 85.4 in. (2170mm)
    Weight 11,836 lbs. (5,380 kg)
    Ground Clearance
    Tire Size Front: 14.9R28; Rear: 18.4R38
